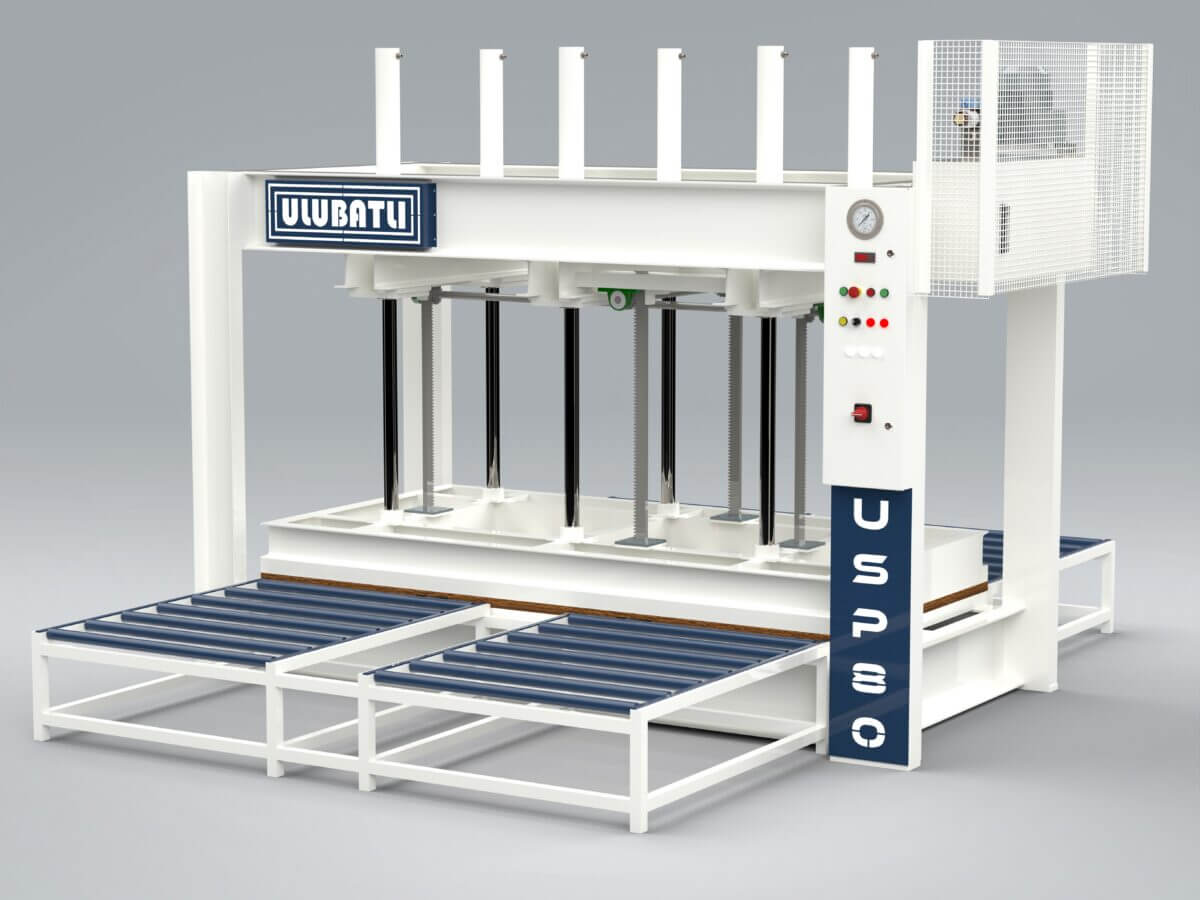

USP-80 Cold Press with Conveyor System
USP-80 cold press with integrated conveyor system for continuous production. Automated feeding and output for high efficiency.
Technical Specifications
Features
- Integrated conveyor system
- Automatic feeding
- Continuous production
- High efficiency
No videos added yet.
Continuous Production with USP-80 Conveyor Cold Press
The Ulubatlı Makina USP-80 conveyor cold press creates an uninterrupted production line with its 1300 x 2500 mm working area, 80-ton pressure capacity, and integrated conveyor system. Adjustable conveyor speed from 5-20 m/min provides flexibility for different production tempos.
Automatic Line Integration
With 5.5 kW motor power, it delivers strong performance while the automatic infeed and outfeed conveyor minimizes operator requirements. Combined inline with a glue spreading machine, you can set up a fully automatic lamination line. Continuous production cycles ensure high efficiency in mass manufacturing.
How does it differ from the non-conveyor model?
The conveyor system increases production speed and reduces operator needs by automatically feeding panels into and out of the press. The conveyor model is preferred for high-capacity serial production lines, while the standard model suits lower-volume workshop production.
How is conveyor speed adjusted?
Adjustable conveyor speed from 5-20 m/min can be optimized for different adhesive types and panel thicknesses. Higher speed for fast-drying adhesives, lower speed for thick panels. The frequency inverter system provides precise speed control.
How to set up a fully automatic line?
The UTS-1300 glue spreading machine combined with the USP-80 conveyor cold press transforms glue application and pressing into a seamless automatic line. High-capacity production is possible with a single operator.
